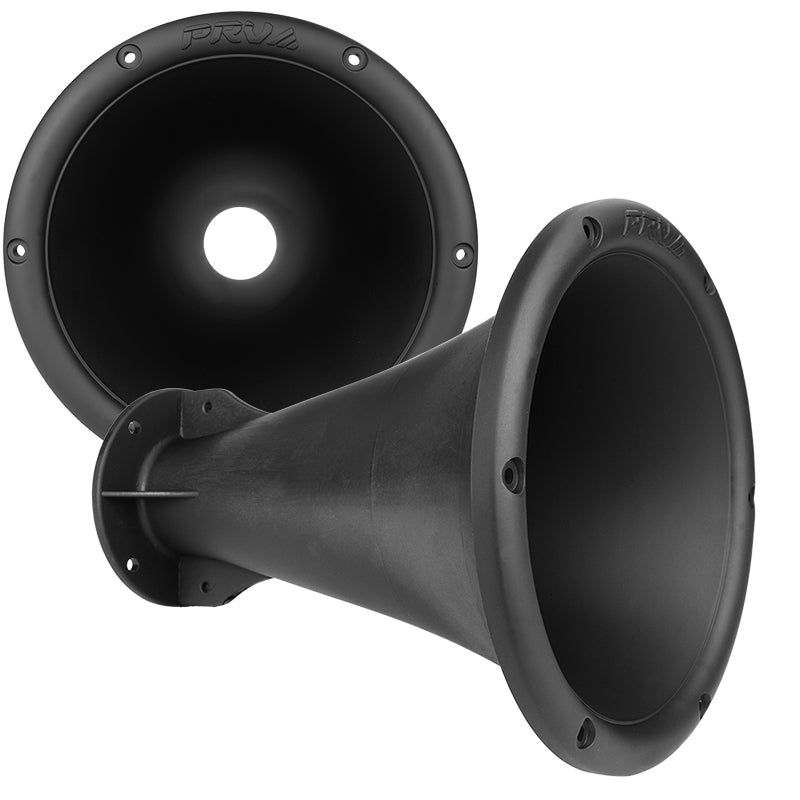

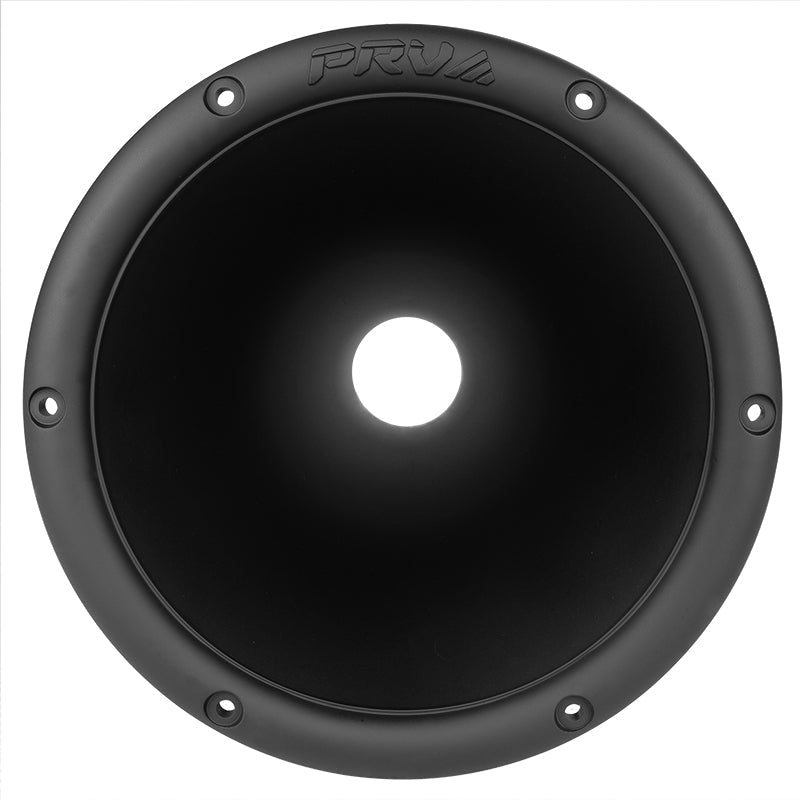

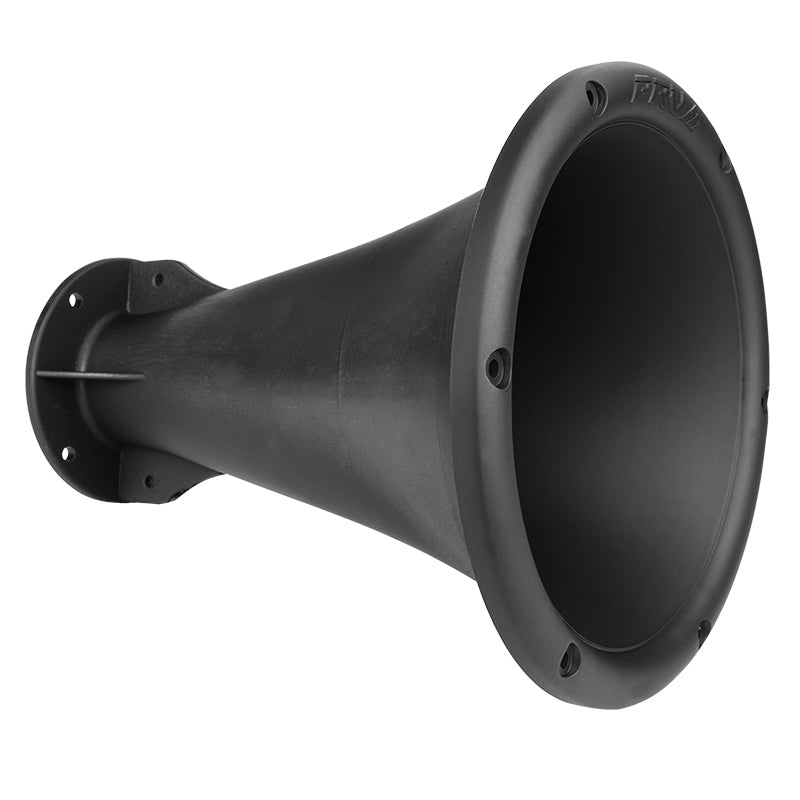

PRV WGP22-50 Waveguide

• Throat Diameter:2” (50.8 mm)
• Mounting Type:Bolt-on
• Hole Dimensions:0.33″ (8.3 mm)
• Bolt Circle:4″ (101.6 mm)
• Nominal Coverage:
• Horizontal:30°
• Vertical:30°
• Flare type:Exponential
• Material:Plastic (ABS)
• Finish / Coating:Black
• Dimensions:
• Height:9.01″ (229 mm)
• Width:9.01″ (229 mm)
• Depth:10.86″ (275 mm)
• Mounting Depth:10.32″ (262 mm)
• Baffle Cutout:
• Diameter Circle:7.5″ (190.5 mm)
• Net weight:1.25 lb (0.57 kg)

GENERAL SPECIFICATIONS
